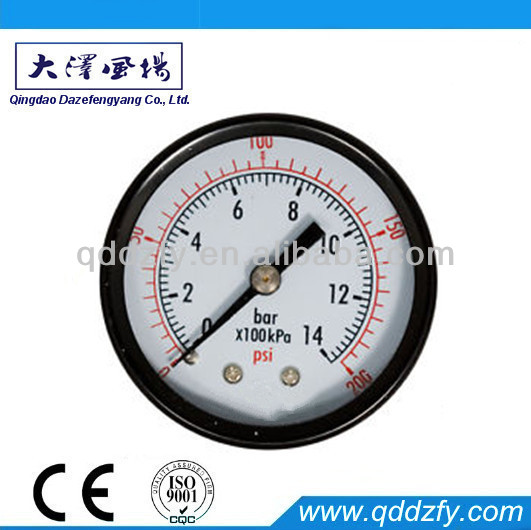

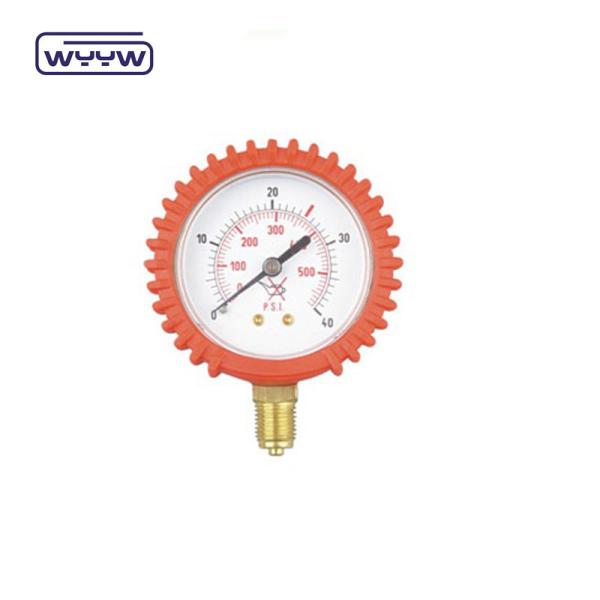

60mm pressure gauge with rubber protective cover
Specifications
rubber cover pressure gauge
1. Material:Copper/SS/Aluminum
2. D:60/100/150
3. Range:1.5/2.5/6/15/60MPa
4.Ce:ISO,CMC
Applications
Process industry, Chemical/petro-chemical, Power stations, etc.
DESCRIPTION
| Nominal Size : | 1.5"(40mm) , 2.0"(50mm), 2.5"(63mm), 3.0"(75mm) ,4.0"(100mm), |
| Pressure Range : | -1~0bar to 0~400bar |
| Accuracy : | ±1%, ±1.6%, ±2.5% |
| Working Temperature: | -20°c~70°c |
| Case: | Stainless steel |
| Bezel : | Stainless steel |
| Bourdon tube : | Phosphor bronze OR Stainless steel ≤ 60 bar: C-type > 60 bar: Helical type |
| Connection: | Brass Or Stainless steel |
| Movement: | Brass Or Stainless steel |
| Dial: | Aluminium |
| Pointer: | Aluminium ,black |
| Window: | Glass Or Plastic |
| Thread: | 1/8",1/4", 3/8",1/2", PT,BSP,NPT etc. |
| Fill: | Glycerine(standard) Silicone(optional) |
| Gaskets/Filling cap: | Neoprene Or Silica gel |
OPTION
1. With red mark adjustable pointer ,
2. With othe unit according requirement, such as bar,psi,kg/cm2 in dial
3. With rubber
ORDERING INFORMATION
Model / Nominal size / Scale range / Connection size / Options
Note: The requirements can be customized
Package: Each pressure gauge is packed in one paper box, then 30pcs packed in a carton box,or as customer’s request.
Warranty: 1 year.
About us:
We are munufacturer of pressure gauge, pressure regulator, cutting&welding torch and nozzle etc. The company is founded in 2005, waiting for your inquiry.
Product show:

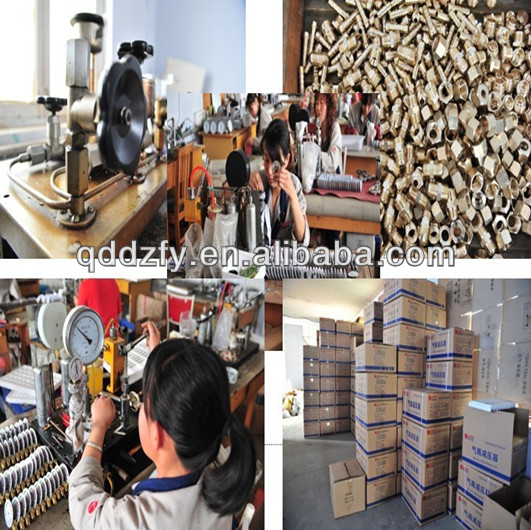

Factory show:
Certificater: ISO9001.
